300ft Load Lighting Geomagnetic Coil Cable 0.75/1.5/4mm2,Tinned Copper Low Voltage Wire,High Mast Road Lighting Cable for Highway,Hoist & Industrial Applications(Green,4mm2)

Specifications：Product Name: Aircraft Waxed Cable (Low Voltage Waxed Wire)Voltage Rating: 450/750VOperating Temperature: -60°C to +105°CConductor: Stranded Tinned CopperInsulation: High-Standard Flame-Retardant PVCSheath: Cotton Braided with Waxed CoatingCore Type: Single CoreColor Options: Red, Blue, Green, White 0.5 mm² – Conductor: 7×0.30mm, Insulation Thickness: 0.40mm, Insulation OD: 1.80mm, Sheath Thickness: 0.50mm, Overall Diameter: 2.80mm0.75 mm² – Conductor: 7×0.37mm, Insulation Thickness: 0.40mm, Insulation OD: 2.00mm, Sheath Thickness: 0.50mm, Overall Diameter: 3.00mm1.5 mm² – Conductor: 19×0.32mm, Insulation Thickness: 0.50mm, Insulation OD: 2.70mm, Sheath Thickness: 0.50mm, Overall Diameter: 3.70mm2.5 mm² – Conductor: 19×0.41mm, Insulation Thickness: 0.50mm, Insulation OD: 3.10mm, Sheath Thickness: 0.50mm, Overall Diameter: 4.10mm4.0 mm² – Conductor: 49×0.32mm, Insulation Thickness: 0.50mm, Insulation OD: 4.00mm, Sheath Thickness: 0.50mm, Overall Diameter: 5.00mm6.0 mm² – Conductor: 49×0.39mm, Insulation Thickness: 0.50mm, Insulation OD: 4.70mm, Sheath Thickness: 0.50mm, Overall Diameter: 5.70mm25.0 mm² – Conductor: 209×0.39mm, Insulation Thickness: 0.60mm, Insulation OD: 8.90mm, Sheath Thickness: 0.50mm, Overall Diameter: 9.90mmFeatures: Flame-Retardant, Waterproof, Cold-Resistant, Anti-Aging, High Insulation SafetyApplications: Aircraft Low-Voltage Circuits, High Mast Road Lighting, Highway Lamp Posts, Cranes, Hoists, and Industrial Lighting WiringImages are for reference only. Actual product may vary slightly due to lighting, production batches, and specifications.

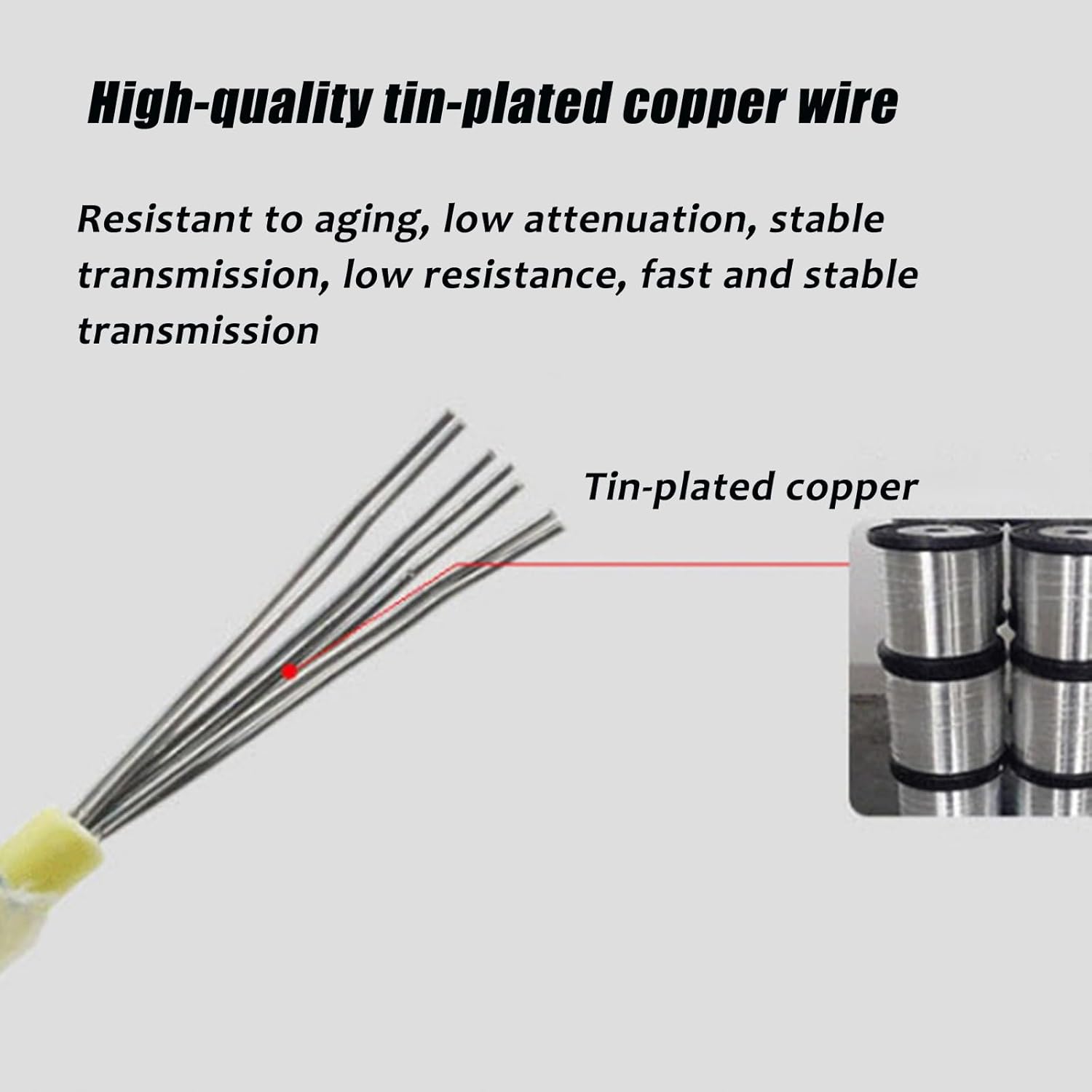

• Tinned Copper Conductor – Made of oxygen-free copper with tin plating, ensuring high conductivity, strong current load capacity, low resistance, and stable transmission with minimal heat generation

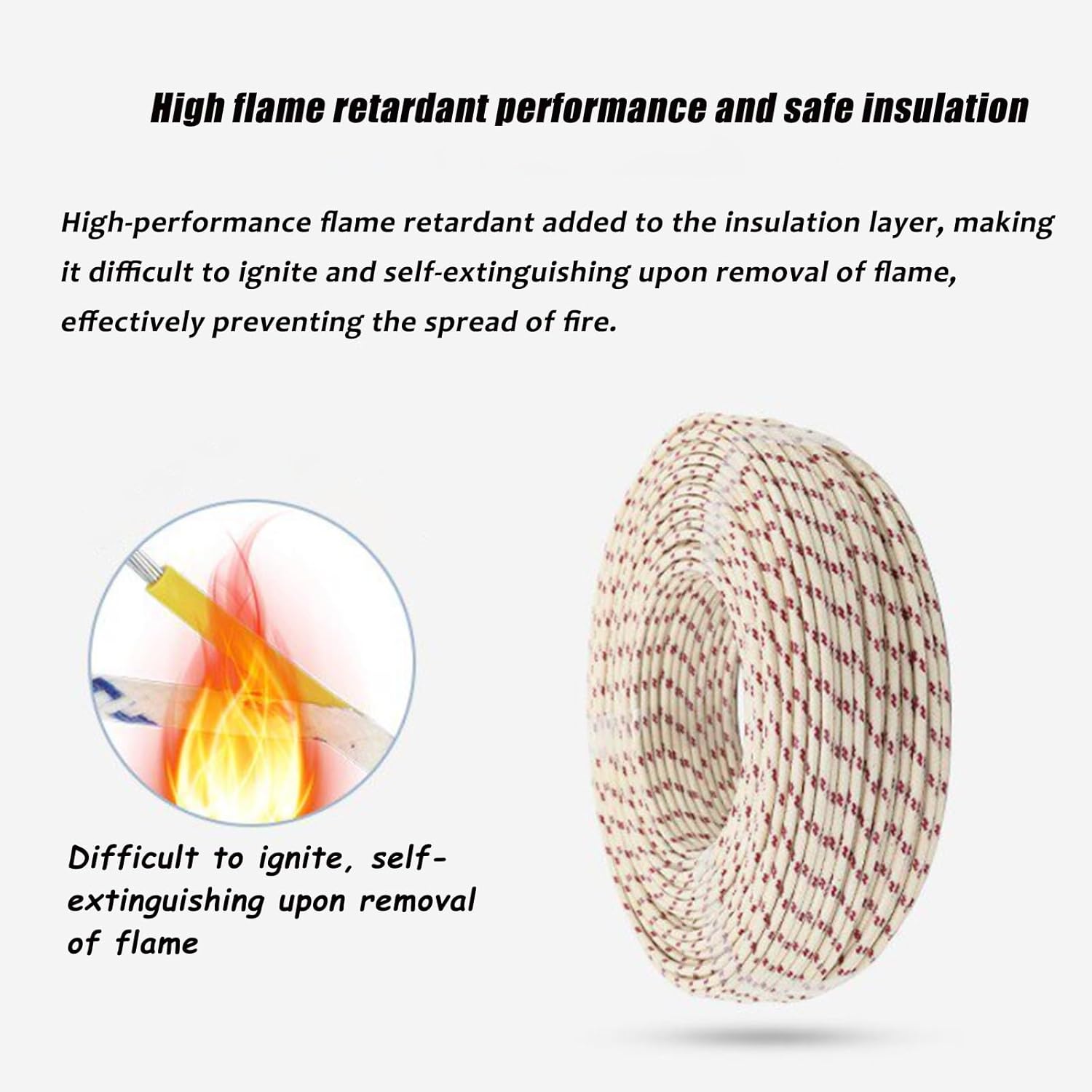

• Flame-Retardant & Safe Insulation – High-standard PVC insulation with advanced flame-retardant additives, not easy to ignite and self-extinguishing when removed from flame, improving electrical safety
• Durable Braided Waxed Sheath – Cotton braided with waxed coating outer layer provides excellent abrasion resistance, waterproof, cold-resistant, and anti-aging performance for long-term use
• Reliable in Harsh Environments – Designed to operate in extreme conditions, including high humidity (up to 98%), cold weather, and exposure to gasoline mixtures without performance degradation
• Wide Industrial Applications – Ideal for aircraft low-voltage circuits, high mast road lighting, highway lamp posts, cranes, hoists, and general lighting wiring installations
